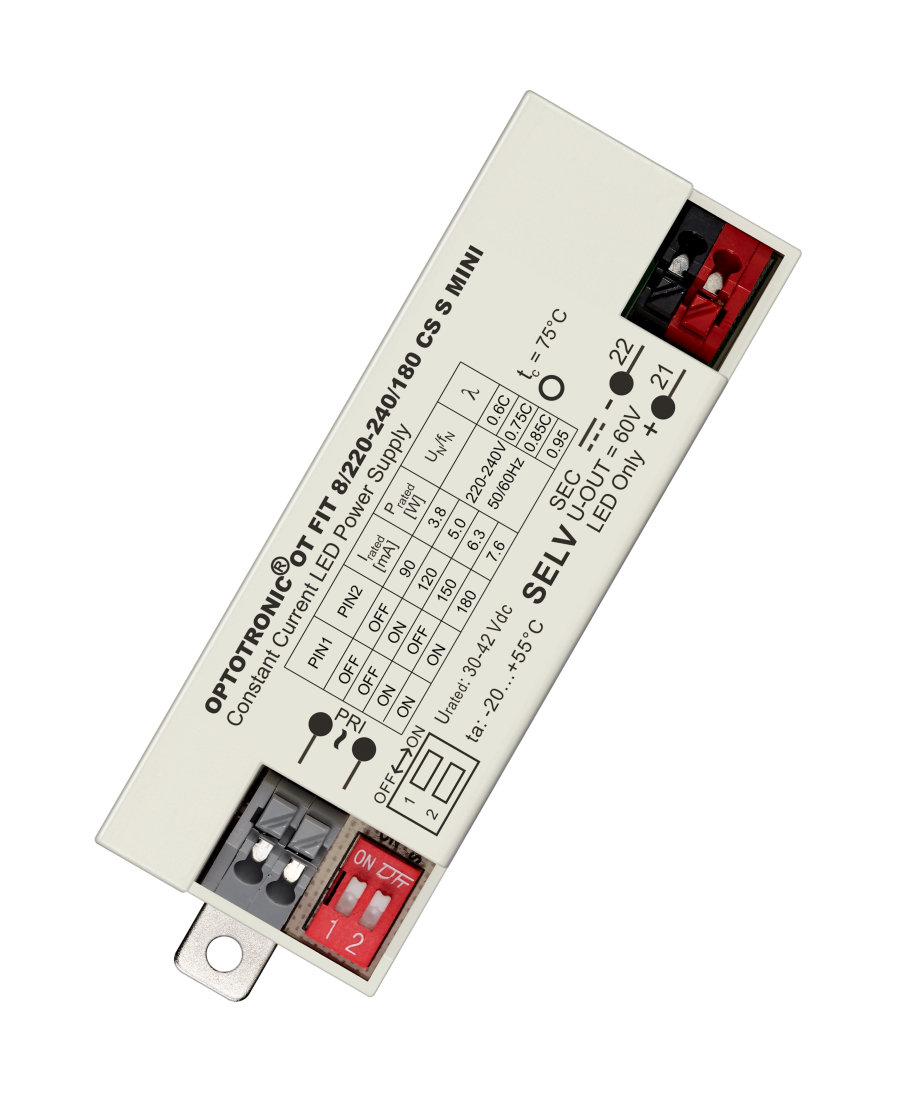

OPTOTRONIC FIT CS MINI
특성 (Features)

• Supply voltage: 220~240 V
• Line frequency: 50 Hz | 60 Hz
• Line voltage: 198~264 V
• According to EN 61347-1, 61347-2-13, 62384
• RI suppression according to CISPR 15
• Line harmonics according to IEC 61000-3-2
• Immunity according to IEC 61547
• Small housing for flexible luminaire designs
• Higher quality of light thanks to < 3% output ripple current
• Operating temperature: up to 60 °C
• User flexibility with four different output currents from one driver
• Flexible current selection via DIP switch
• Reversible overtemperature, overload, short-circuit and open-circuit protection
• High efficiency (up to 90%)
